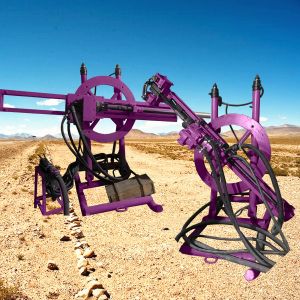

Tunnel Turntable Rock Pneumatic Impactor Drilling Machine
The pneumatic rock drilling machine of the disc drill frame is powered by compressed air, and is mainly used for fan-shaped or annular medium-depth blastholes in underground mining fields, and can also be used for underground bolts support.
Turntable rocks drilling machine is a medium and deep hole rock drilling tool powered by compressed air. The medium-deep hole rock drilling equipment powered by compressed air is mainly used for the stonework engineering of the upward fan-shaped or annular medium-deep hole drilling in the underground mining field. It is suitable for drilling with a diameter of 50-80mm and a drilling depth of 30m. Using a cross-shaped alloy drill bit with a diameter of 65mm, the average pure rock drilling speed can reach 680mm/min in F12-14 grade ore. The drill frame is simple in structure, easy to dismantle and transport, and works well.
The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m
Structural Features This drill frame has a simple structure, is easy to disassemble and transport, operates safely and reliably, and is highly efficient. The entire drilling frame is composed of three components: the drilling frame connection part, the propeller connection part and the operation platform connection part. The drilling frame connection part mainly includes three parts: the air top, the disc and the bottom skid. The propeller joint is composed of four components: the brazing device, the guide rail, the slide seat and the propulsion motor. The console assembly includes main components such as the control valve and the oil mist lubricator.
It is suitable for drilling with a diameter of 50-80mm and a drilling depth of 35m. The drill frame is simple in structure, easy to dismantle and transport, and works well.
Products Description
| Type | Rotary Drilling Rig | | Product name | Drilling Rig | | Applicable | Building Energy ,Mining,borehole drilling rig | |
| Parameters | Model SR90 | Model SR150 | | Drilling Hole Diameter | 50-80mm | 80-140mm | | Max. Drilling Hole Depth | 35m | 180m | | Shank Model | φ38mmx90mm | | | Impact Force | ≥225J | 15000N | | Impact Frequency | ≥34HZ | 60rpm | | Output Torque of Drill Rod | ≥140NM | 1500-2000NM | | Workable Tunnel Dimensions | 2.2m x 2.2m - 3.0m x 3.0m | 2.2m x 2.2m - 3.0m x 3.0m | | Total Air Consumption | ≤225L/s | 120-350L/s | | Drilling Angles | 0-360 degrees | 0-360 degrees | | Mounted | No (Man Portable) | Two Wheels Trailer | | Weight for Rocks Drilling Machine | 95KG | 450KG | | Dimensions for Rocks Drilling Machine | 890x360x305mm | |
